Benefits
DOB IC driver, integrated design, easy installation and wiring
Ultra-thin shape, simple and beautiful
Complete size, serialized style shape
Back-lit, luminous uniform without dark area
High performance LED chips, high lumen efficiency and low light decay
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL1241 | 5 | 0.5 | 370 | 120° | 15000 | 93*35*93 | 485*380*205 | 100 |
| MQTL1241 | 7 | 0.5 | 520 | 120° | 15000 | 107*35*107 | 555*380*235 | 100 |
| MQTL1241 | 9 | 0.5 | 720 | 120° | 15000 | 123*35*123 | 515*380*265 | 80 |
| MQTL1241 | 12 | 0.5 | 960 | 120° | 15000 | 150*36*150 | 470*390*210 | 60 |
| MQTL1241 | 15 | 0.5 | 1200 | 120° | 15000 | 175*36*175 | 545*390*370 | 60 |
| MQTL1241 | 24 | 0.5 | 1920 | 120° | 15000 | 225*36*225 | 470*390*470 | 40 |

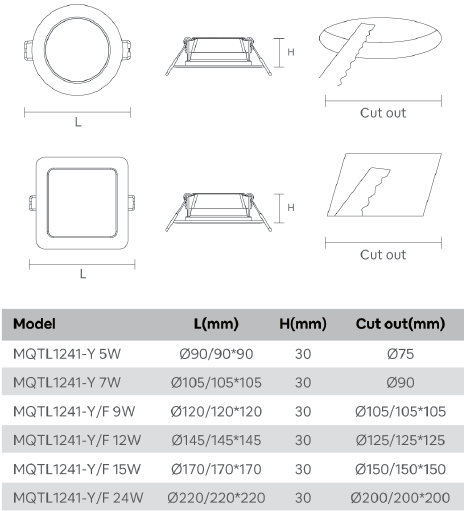

Dimensional Drawing
Download information
