Benefits
Plastic + Stamped aluminum heat sink, stable heat dissipation performance
DOB driver, integrated design
SMD mimics COB design
Professional optical design, uniform irradiation, no spot/aperture
Tempered glass, high strength and unbreakable
170- 240V
CRI ≥ 80
-20-40℃
IP20
IK02
3000K/4000K/6500K
Black
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL1223 | 7 | 0.5 | 630 | 100° | 25000 | 95*36*95 | 405*390*210 | 80 |
| MQTL1223 | 10 | 0.5 | 900 | 100° | 25000 | 122*50*122 | 390*265*265 | 60 |
| MQTL1223 | 20 | 0.5 | 1900 | 85° | 25000 | 172*53*172 | 538*285*365 | 30 |
| MQTL1223 | 30 | 0.9 | 3000 | 60° | 25000 | 230*60*230 | 480*320*480 | 20 |
| MQTL1223-M | 20 | 0.5 | 1900 | 85° | 25000 | 175*49*175 | 510*370*195 | 20 |
| MQTL1223-M | 30 | 0.9 | 3000 | 60° | 25000 | 235*55*235 | 570*255*255 | 10 |
| MQTL1223-M | 40 | 0.9 | 4000 | 85° | 25000 | 300*62*300 | 640*320*320 | 10 |

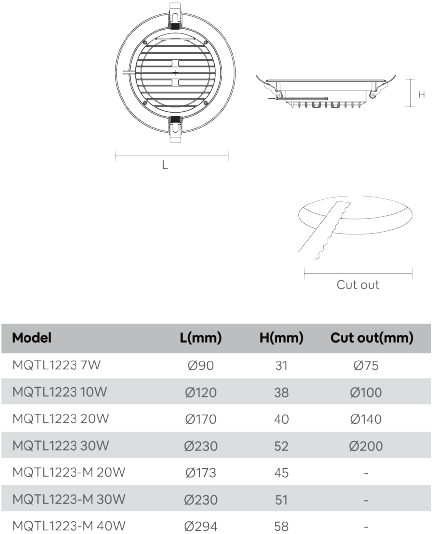

Dimensional Drawing
