Benefits
Integrated IC constant current or linear DOB driver, CE compliant, safe and reliable
Up to 50% energy saving compared to conventional downlight
Healthy lighting without ultraviolet, infrared radiation or mercury
High-quality engineering plastic, high strength and fearless turning yellow
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MXTL1045 | 12 | 0.5 | 1080 | 120° | 15000 | 130*41*131 | 545*440*280 | 80 |
| MXTL1045 | 18 | 0.5 | 1620 | 120° | 15000 | 185*41*185 | 575*440*390 | 60 |
| MXTL1045 | 24 | 0.5 | 2160 | 120° | 15000 | 230*41*230 | 480*440*480 | 40 |
| MXTL1045 | 30 | 0.5 | 2700 | 120° | 15000 | 255*41*255 | 530*440*530 | 40 |

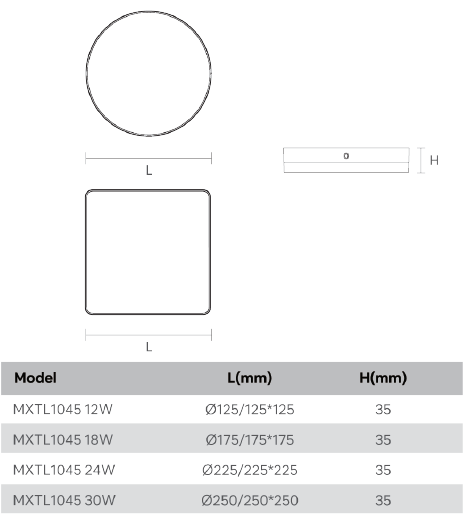

Dimensional Drawing
Download information
