Benefits
Ultra-slim design，good installing effect
High light efficiency, more energy-saving
High quality built-in LED driver, easy to install and maintain
Aluminum housing for higher power and brightness
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MXL2115 | 30 | 0.5/0.9 | 2400 | 120° | 25000 | 625*70*37 | 645*300*210 | 20 |
| MXL2115 | 40 | 0.5/0.9 | 3200 | 120° | 25000 | 625*70*37 | 645*300*210 | 20 |
| MXL2115 | 60 | 0.5/0.9 | 4800 | 120° | 25000 | 1225*70*37 | 1245*300*210 | 20 |
| MXL2115 | 80 | 0.5/0.9 | 6400 | 120° | 25000 | 1225*70*37 | 1245*300*210 | 20 |

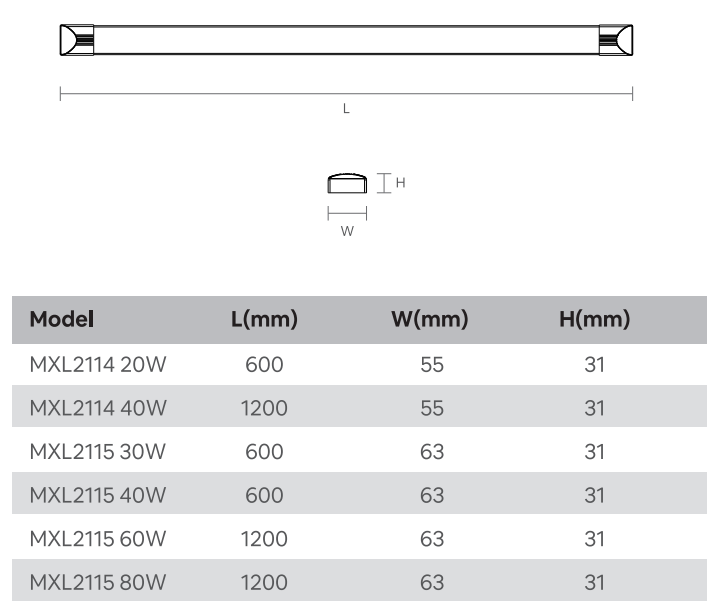

Dimensional Drawing
Download information
