Benefits
One-piece molding housing, simple and refined appearance
A wide selection of size and shape， suitable for a wide range of die-cut
Ultra-slim design，Suitable for more wide range of installing height
sufacemount accessory optional
Long lifespan
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL1119F | 9 | 0.5 | 675 | 120° | 15000 | 148*38*125 | 612*400*275 | 80 |
| MQTL1119F | 12 | 0.5 | 900 | 120° | 15000 | 173*42*153 | 540*450*325 | 60 |
| MQTL1119F | 15 | 0.5 | 1200 | 120° | 15000 | 200*40*178 | 625*430*380 | 60 |
| MQTL1119F | 24 | 0.5 | 1920 | 120° | 15000 | 245*40*223 | 510*430*470 | 40 |

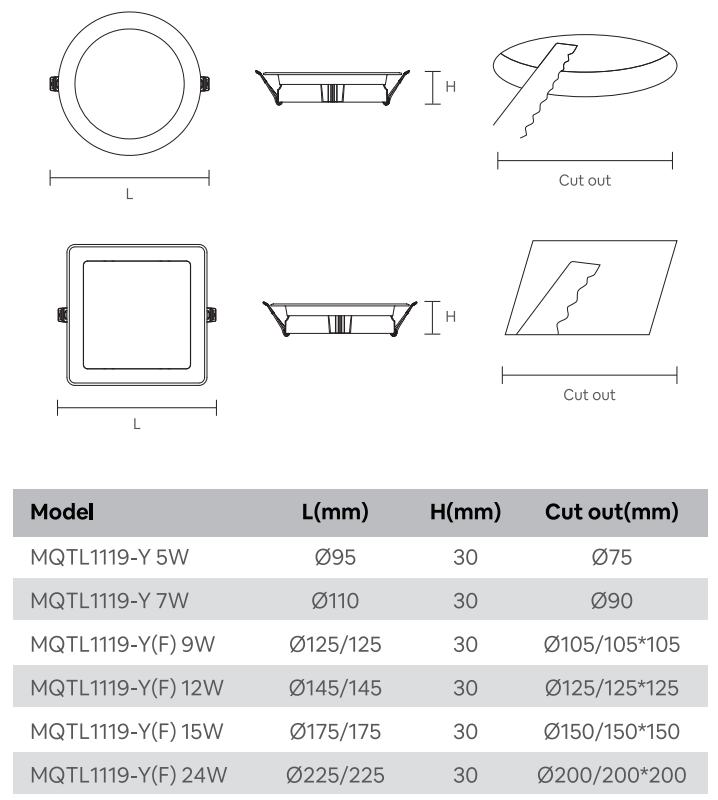

Dimensional Drawing
