Benefits
Frameless design, more luminous area
Recessed with adjustable die-cut, easier to install and match
DOB back it, slim integrated design
High light efficiency, 110Im/W
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MXTL1049 | 9 | 0.5 | 990 | 240° | 15000 | 90*38*100 | 475*410*220 | 100 |
| MXTL1049 | 18 | 0.5 | 1980 | 240° | 15000 | 125*38*125 | 410*395*270 | 60 |
| MXTL1049 | 24 | 0.5 | 2640 | 240° | 15000 | 170*45*170 | 470*360*190 | 20 |
| MXTL1049 | 36 | 0.5/0.9 | 3960 | 240° | 15000 | 225*45*225 | 470*245*245 | 10 |

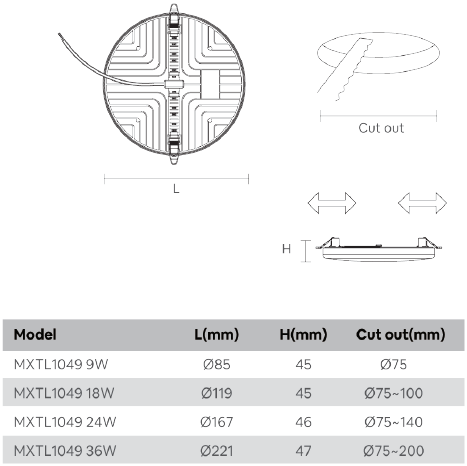

Dimensional Drawing
