Benefits
Die cast aluminum radiator, excellent heat dissipation performance
Brand driven, stable and reliable
Professional optical lenses, 24/36/60°optional
Deep concave anti-glare, UGR < 19
COB chips, high light efficiency, Ra＞90
Comply with CB/CE, Safe and reliable
170-240V
CRI ≥ 90
-20-40℃
IP20
IK08
3000K/4000K/6500K
White
Black
Golden
Grey
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| YTDL002 | 10 | 0.5 | 900 | 24/36/60 | 50000 | 100*85*100 | 535*520*220 | 60 |
| YTDL002 | 20 | 0.5 | 1800 | 24/36/60 | 50000 | 117*98*117 | 515*490*255 | 40 |
| YTDL002 | 30 | 0.9 | 3000 | 24/36/60 | 50000 | 180*85*163 | 450*380*345 | 20 |
| YTDL002 | 40 | 0.9 | 4000 | 24/36/60 | 50000 | 225*100*225 | 525*470*470 | 20 |

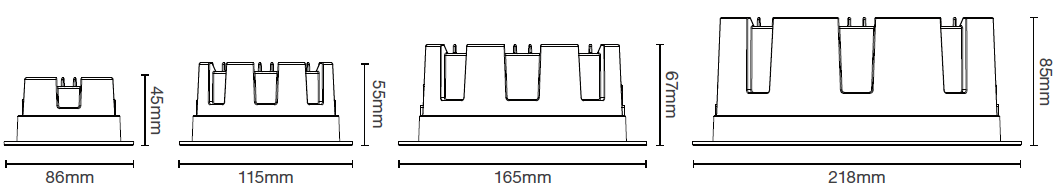

Dimensional Drawing
Download information
