Benefits
A wide selection of size and shape，suitable for a wide range of die-cut
Good heat dissipation, Long lifespan
Professional optical design and LED selection，uniform and soft light, flicker free

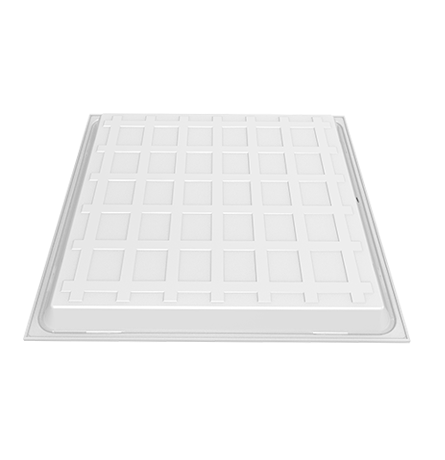

Backlit led light ,more brightness
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQL3035 | 40 | 0.9 | 3600 | 120° | 25000 | 625*45*645 | 640*390*665 | 8 |
| MQL3035 | 40 | 0.9 | 3600 | 120° | 25000 | 1245*45*325 | 1260*200*340 | 4 |
| MQL3035 | 48 | 0.9 | 4320 | 120° | 25000 | 603*46*648 | 648*410*693 | 8 |
| MQL3035 | 48 | 0.9 | 4320 | 120° | 25000 | 1245*45*325 | 1260*200*340 | 4 |
| MQL3035 | 72 | 0.9 | 6150 | 120° | 25000 | 603*46*648 | 648*410*693 | 8 |
| MQL3035 | 72 | 0.9 | 6150 | 120° | 25000 | 1245*45*325 | 1260*200*340 | 4 |

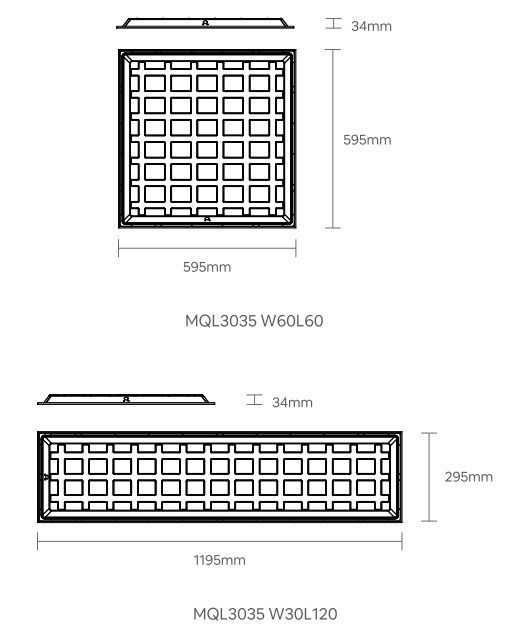

Dimensional Drawing
Download information
