Benefits
Die-cast aluminum housing for higher power and brightness
Good heat dissipation, Long lifespan
Micro prism lens or reflector for precise beam angle control
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
Grey
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MXTL2002 | 10 | 0.5 | 720 | 15/24/38/50° | 25000 | 85*85*115 | 355*270*360 | 36 |
| MXTL2002 | 2x10 | 0.5 | 1440 | 15/24/38/50° | 25000 | 160*85*115 | 355*270*360 | 18 |
| MXTL2002 | 20 | 0.5 | 1440 | 15/24/38/50° | 25000 | 105*105*140 | 435*225*435 | 24 |
| MXTL2002 | 2x20 | 0.5 | 2880 | 15/24/38/50° | 25000 | 200*105*140 | 435*225*435 | 12 |

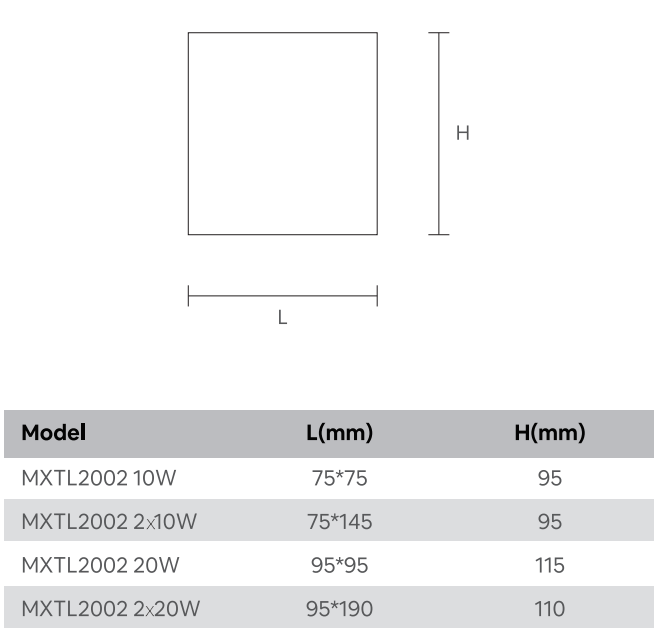

Dimensional Drawing
