Benefits
Die-cast aluminum housing for higher power and brightness
Good heat dissipation, Long lifespan
Micro prism lens or reflector for precise beam angle control
Damping shafts for flexible adjustment focus on lighting
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
Grey
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL5001-1 | 7 | 0.5 | 470 | 15/24/36° | 25000 | 140*140*115 | 580*435*360 | 36 |
| MQTL5001-1 | 15 | 0.5 | 1010 | 15/24/36° | 25000 | 150*150*110 | 620*320*240 | 16 |
| MQTL5001-1 | 30 | 0.5/0.9 | 2025 | 15/24/36° | 25000 | 200*200*140 | 615*415*295 | 12 |
| MQTL5001-1 | 2*7 | 0.5 | 940 | 15/24/36° | 25000 | 205*140*115 | 430*435*360 | 18 |
| MQTL5001-1 | 2*15 | 0.5 | 2025 | 15/24/36° | 25000 | 260*150*110 | 800*320*240 | 12 |
| MQTL5001-1 | 2*30 | 0.5/0.9 | 4050 | 15/24/36° | 25000 | 305*200*140 | 560*330*250 | 6 |
| MQTL5001-1 | 3*7 | 0.5 | 1420 | 15/24/36° | 25000 | 280*140*115 | 580*435*360 | 18 |
| MQTL5001-1 | 3*15 | 0.5 | 3040 | 15/24/36° | 25000 | 355*180*100 | 375*375*335 | 6 |

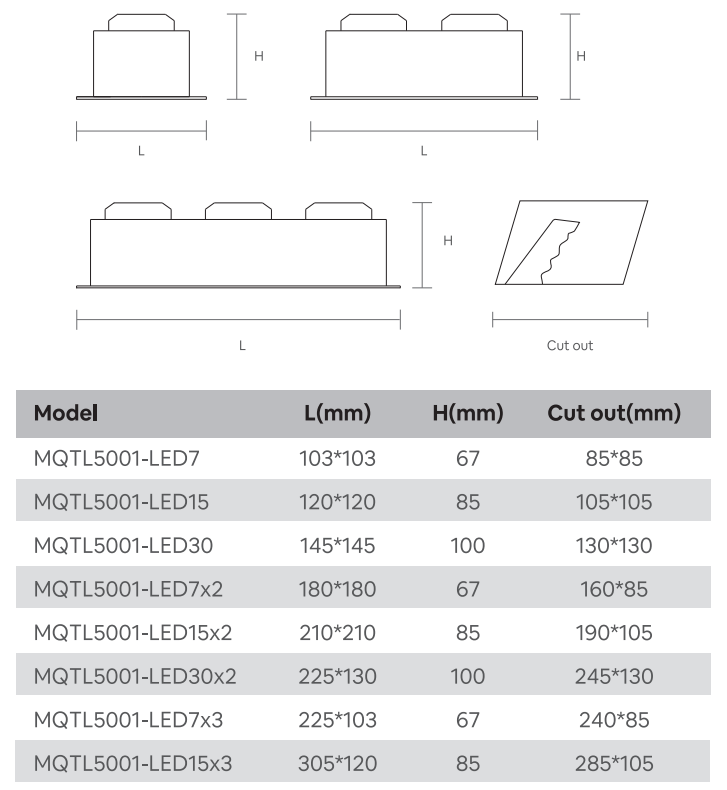

Dimensional Drawing
