Benefits
Unique design, modern ultra-narrow frame
Built-in, DOB IC constant current driver
High strength PC housing, Safe and durable
Flicker free and Anti-glare, eye comfort
No UV, infrared radiation, no mercury environmental protection
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL1131 | 4 | 0.5 | 240 | 80° | 25000 | 77*65*92 | 545*405*205 | 80 |
| MQTL1131 | 8 | 0.5 | 520 | 90° | 25000 | 87*65*87 | 545*455*195 | 80 |
| MQTL1131 | 10 | 0.5 | 800 | 100° | 25000 | 115*65*115 | 600*415*250 | 60 |
| MQTL1131 | 12 | 0.5 | 960 | 100° | 25000 | 145*65*145 | 605*350*310 | 40 |
| MQTL1131 | 15 | 0.5 | 1200 | 100° | 25000 | 170*67*170 | 360*360*360 | 20 |
| MQTL1131 | 18 | 0.5 | 1440 | 100° | 25000 | 193*72*193 | 405*385*405 | 20 |
| MQTL1131 | 24 | 0.5 | 1920 | 100° | 25000 | 218*72*218 | 455*385*455 | 20 |

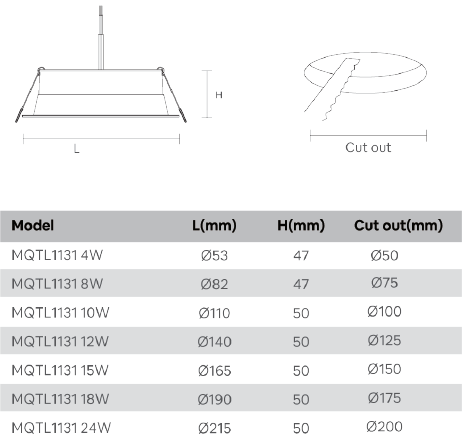

Dimensional Drawing
Download information
