Benefits
One-piece molding housing, simple and refined appearance
A wide selection of size and shape， suitable for a wide range of die-cut
Ultra-slim design，Suitable for more wide range of installing height
sufacemount accessory optional
Long lifespan
170-240V
CRI ≥ 80
-20-40°C
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Beam Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| MQTL1119Y | 5 | 0.5 | 350 | 120° | 15000 | 95*40*95 | 495*425*210 | 100 |
| MQTL1119Y | 7 | 0.5 | 490 | 120° | 15000 | 110*40*110 | 570*425*240 | 100 |
| MQTL1119Y | 9 | 0.5 | 675 | 120° | 15000 | 125*38*125 | 520*405*270 | 80 |
| MQTL1119Y | 12 | 0.5 | 900 | 120° | 15000 | 150*36*150 | 470*385*320 | 60 |
| MQTL1119Y | 15 | 0.5 | 1200 | 120° | 15000 | 178*38*178 | 555*410*378 | 60 |
| MQTL1119Y | 24 | 0.5 | 1920 | 120° | 15000 | 222*38*222 | 465*410*465 | 40 |

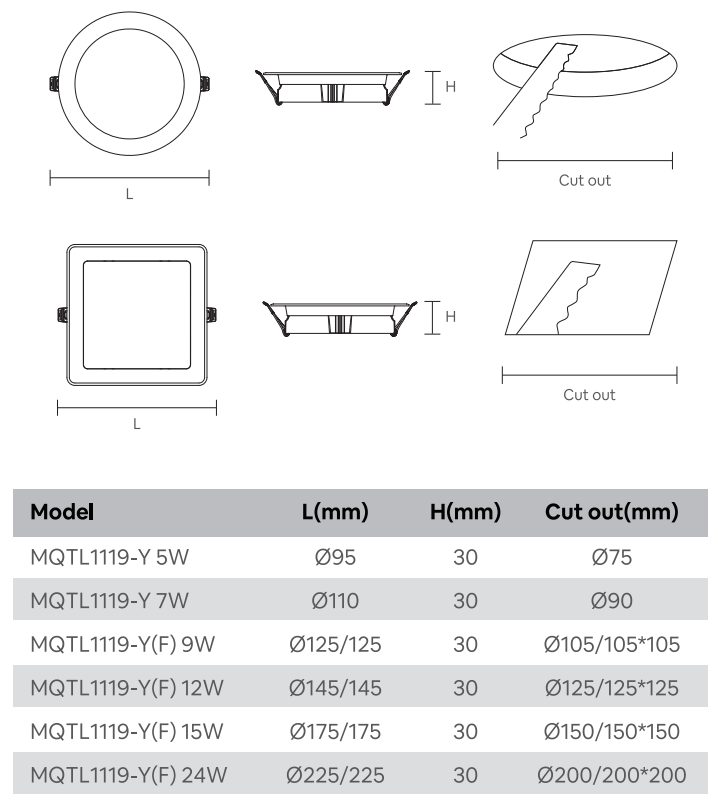

Dimensional Drawing
