Benefits
Die-cast aluminum housing for higher power and brightness
Long lifespan
More brightness at normal wattage , Energy saving
HID replacement
Smaller size which can compatible with more housings
170- 240V
CRI ≥ 80
-20-40℃
IP20
IK02
3000K/4000K/6500K
White
| Model | Wattage | PF | Lm | Bean Angle | Lifetime | Single Box Dimensions(L*W*H)mm | Out Box Dimensions(L*W*H)mm | Packing Qty(PCS/CTN) |
| YTPDGLG3 | 60 | 0.5/0.9 | 6600 | 200° | 25000 | 101*101*260 | 425*323*280 | 12 |
| YTPDGLG3 | 90 | 0.5/0.9 | 9900 | 200° | 25000 | 125*125*315 | 522*395*335 | 12 |
| YTPDGLG3 | 120 | 0.5/0.9 | 13200 | 200° | 25000 | 152*152*400 | 635*325*420 | 8 |

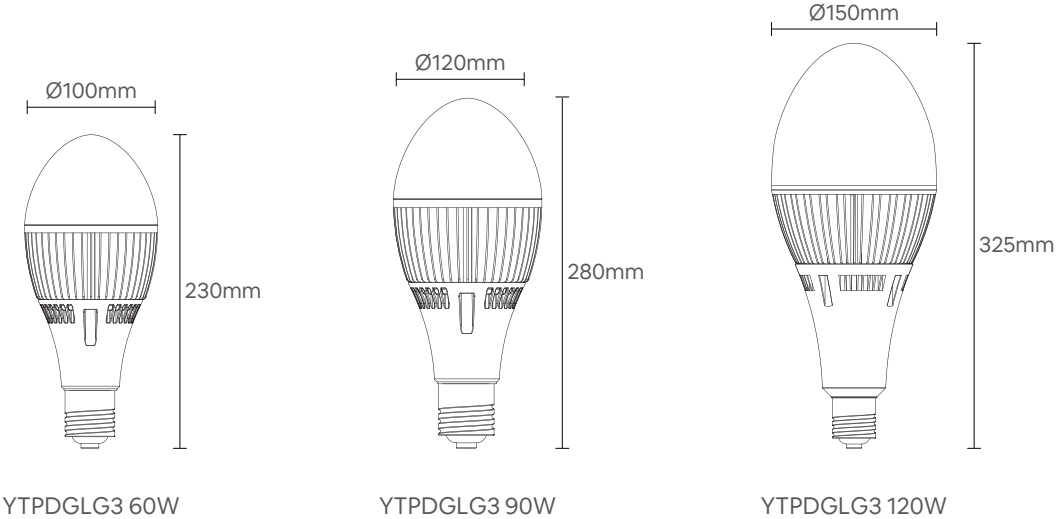

Dimensional Drawing
